Venhill Universal Clutch Cable Kit – Metric (2.35m)

Venhill Universal Clutch Cable Kit – Metric (2.35m)

This high quality universal clutch cable kit By Venhill includes all the necessary components to make your own custom clutch cables. One end of the inner cable is fitted with a barrel nipple. The other end will need to cut to the right length and fitted with the correct nipple which is soldered into place.

Basic soldering kit is required to solder the nipples in place. The universal cable kit By Venhill includes various ferrules and adjusters that can be adapted for a variety of models.

The adjusters are a snug fit on the conduit which can be bonded in place or with the use of a small centre punch to make a small indentation on the side of the adjuster.

Genuine High Quality Venhill Throttle cable including galvanized steel wire for easy soldering and PTFE (Teflon) liner for super smooth, low friction operation.

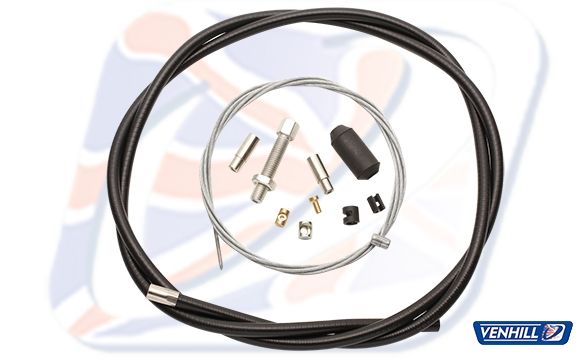

Venhill Universal Clutch Cable Kit – Metric Contents:

• LB3TS 2.35M of 7mm outer conduit
• P19/2 2.6M of 2mm Galvanized wire strand
• 1 X BN610 Barrel Nipple 6mm O.D. X 10mm, 2.10mm bore
• 1 X F101 Ferrule for LB3TS (outer conduit)
• 1 X F103 Ferrule for LB3TS (outer Conduit)
• 1 X BN89L Loose Barrel Nipple 8mm O.D. X 9mm
• 1 X TN24 Trumpet Nipple 3.5mm-5.8mm X 9.5mm
• 1 X AB125/42 Slotted Lever Adjuster M8 X 1.25 X 30mm
• 1 X LN8125  Lock Nut M8 X 1.25 Zinc
• 1 X M4002 Neoprene Adjuster Boot
• 1 X N8  Nylon Nipple Sleeve 8mm Diameter
• 1 X N10 Nylon Nipple Sleeve 10mm Diameter
