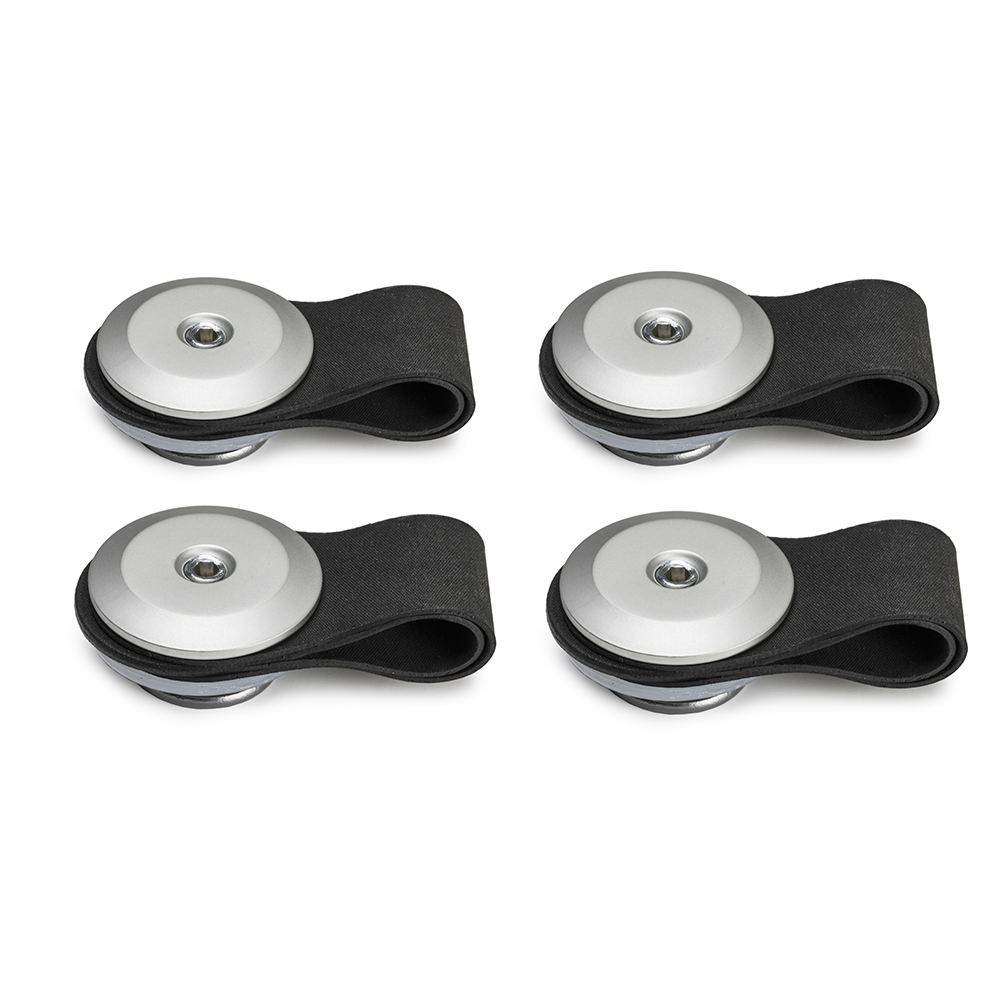

Kriega OS-Rack Loops KTM 1090, 1190, 1290
Attach to a KTM 1090, 1190, 1290 OEM rear rack to create 4 hook points to mount an OS-ADV PACK or US-DRYPACK
- Also Perfect for mounting roll-top bags and tents using OS-CAM Straps.
- Ultra secure whatever the terrain.
- Lightweight T6 alloy.
- Only 25g per loop.
- Easy fit – no drilling required.
FITTING INSTRUCTIONS

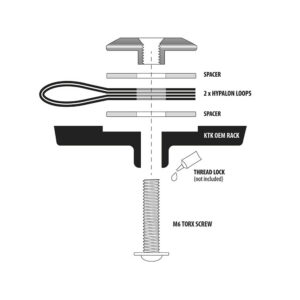

Use the 4 x recessed holes on the top case carrier to mount the Rack loops (see diagram below) and always use thread lock on the M6 TORX screws.
IMPORTANT
DO NOT OVER TIGHTEN : The hypalon loops need to rotate to function correctly. ALLOW THE THREAD LOCK TO CURE BEFORE USE (24hrs)
