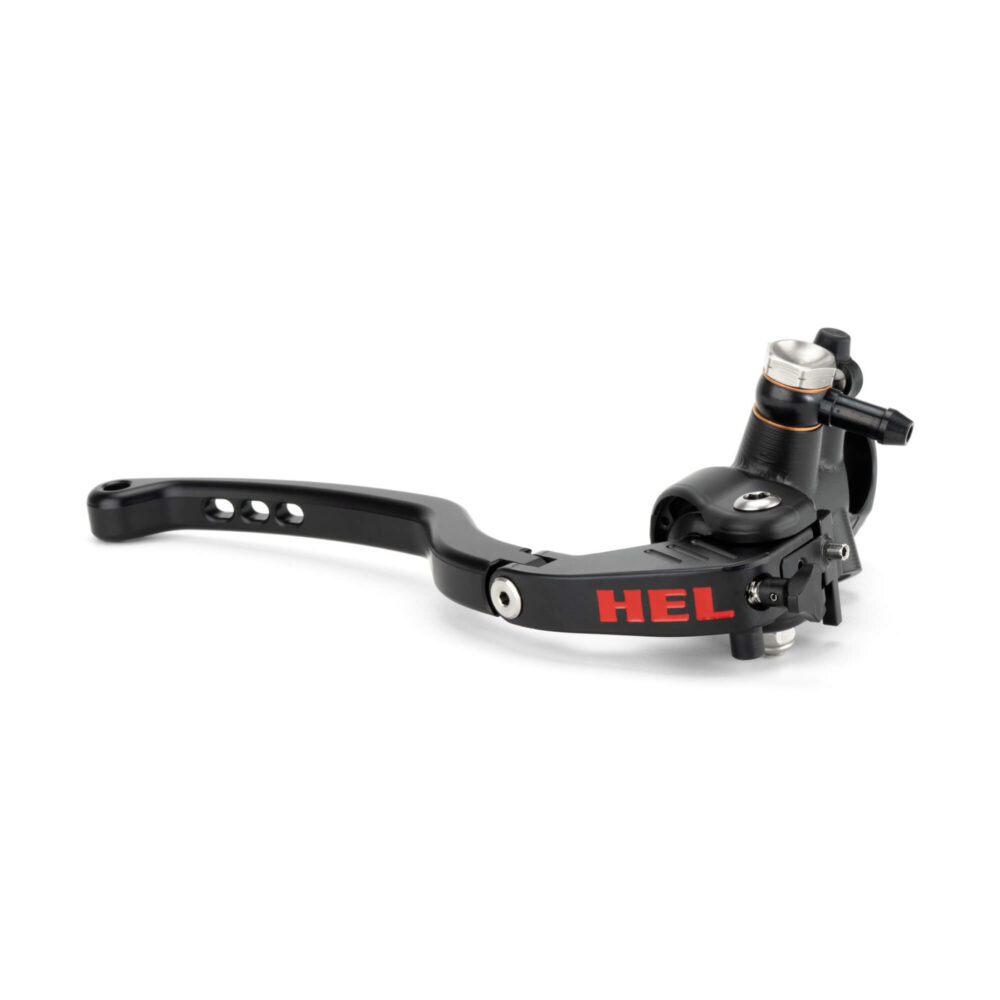

HEL V2 Billet Radial Master Cylinder
After incredible amounts of in-house, on road and on track R&D we are very pleased to announce the launch of our latest V2 CNC Machined Radial Brake Master Cylinder.
We manufacture all metal parts of the brake master cylinder (including levers) in-house on our suite of Brother and Star CNC machines from solid billets of 6082-T6 aluminum.
This new version really packs a punch with new upgrades and design modifications to make this the most complete master cylinder we have ever made.

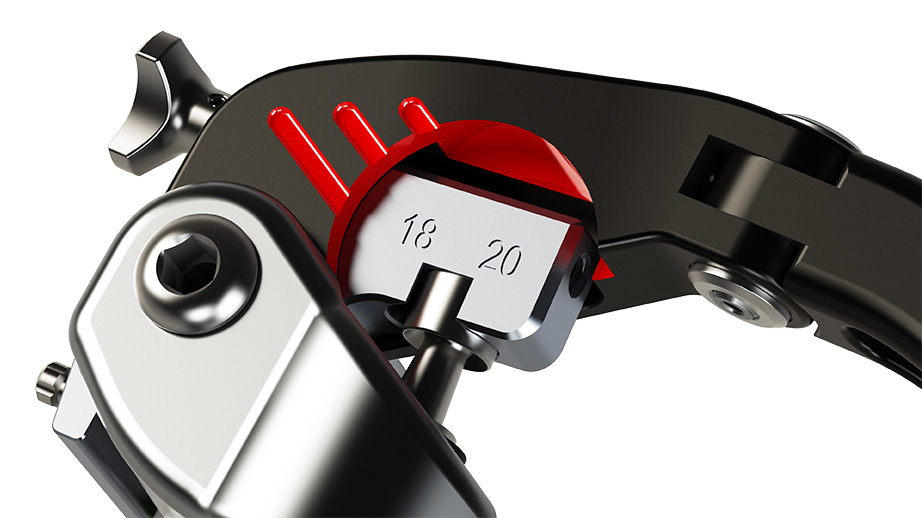

This latest incarnation comes with the ability, as with previous versions, to select ratios as shown in this cut away:

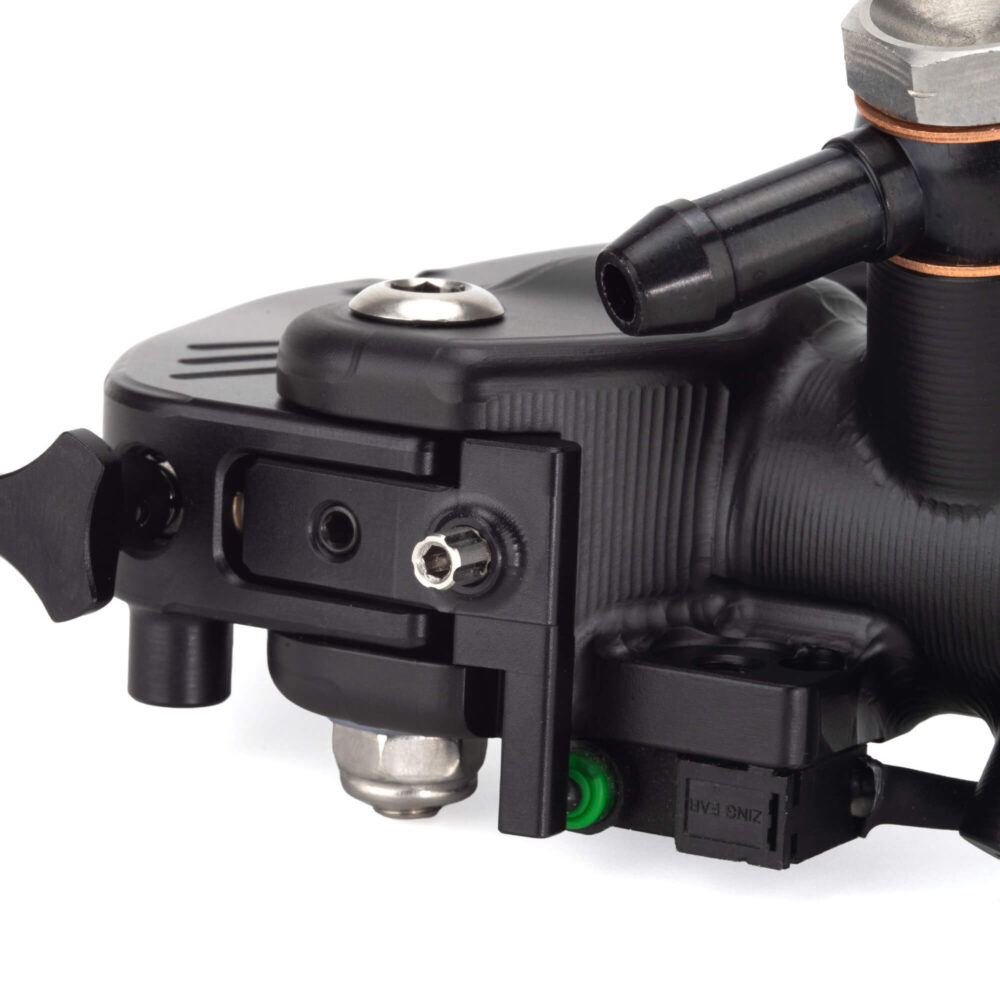

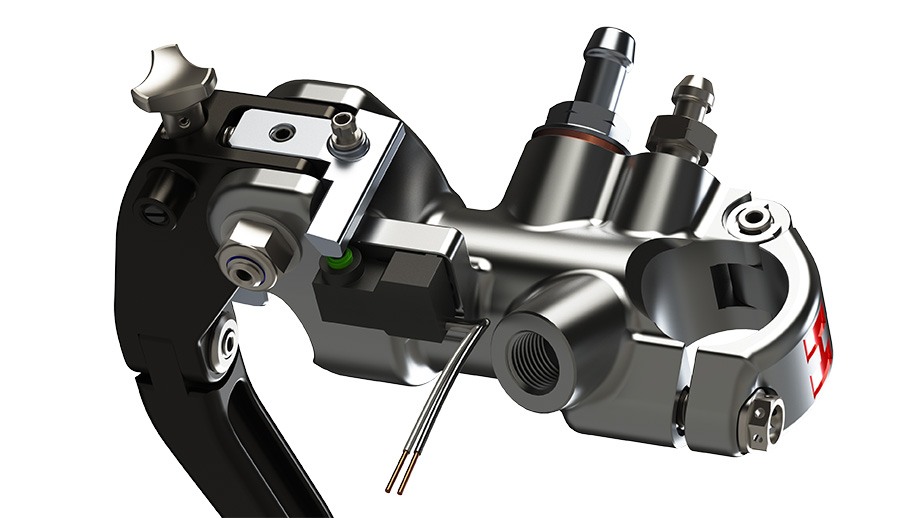

We have also included a microswitch (which can be removed if not needed) designed specifically to fit our master cylinder giving the ability to connect to the brake light with ease, perfect for the road!

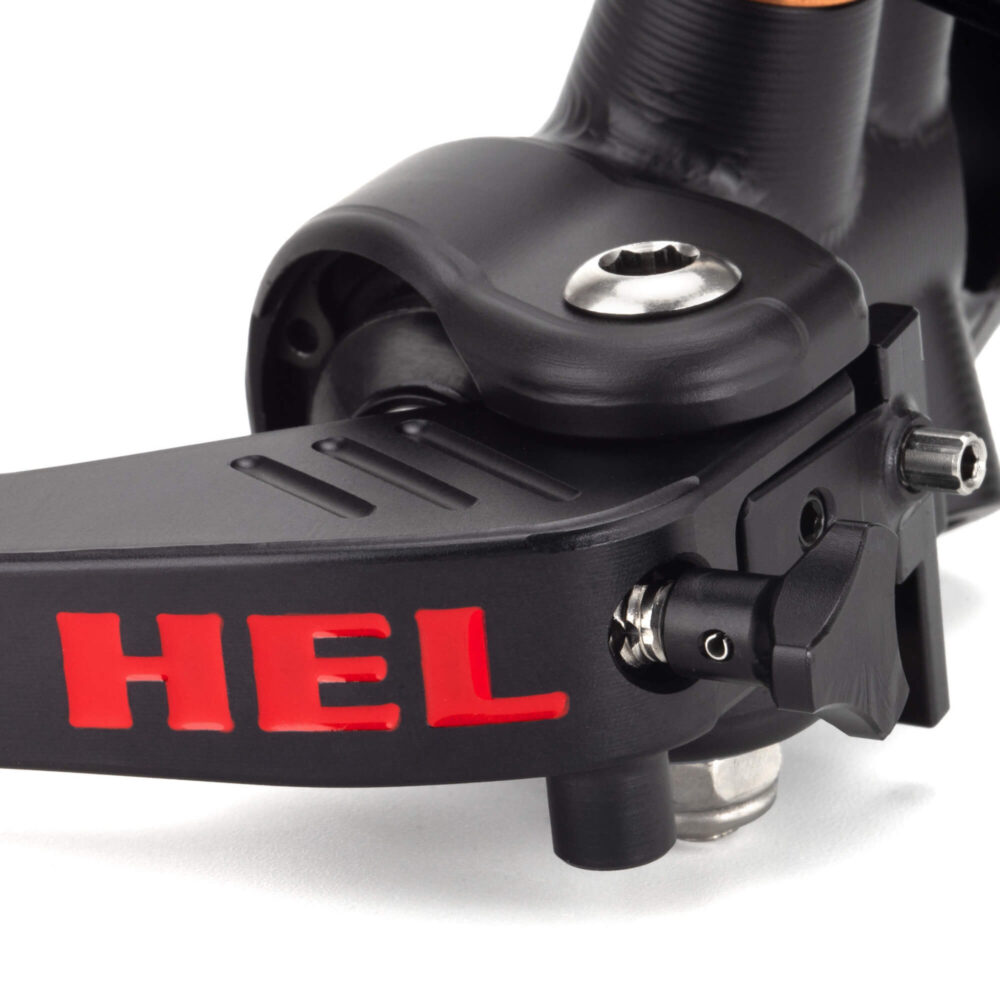

The V2 also has our new three bladed span adjuster – easy to use with gloves and we have added the ability to alter initial bite point

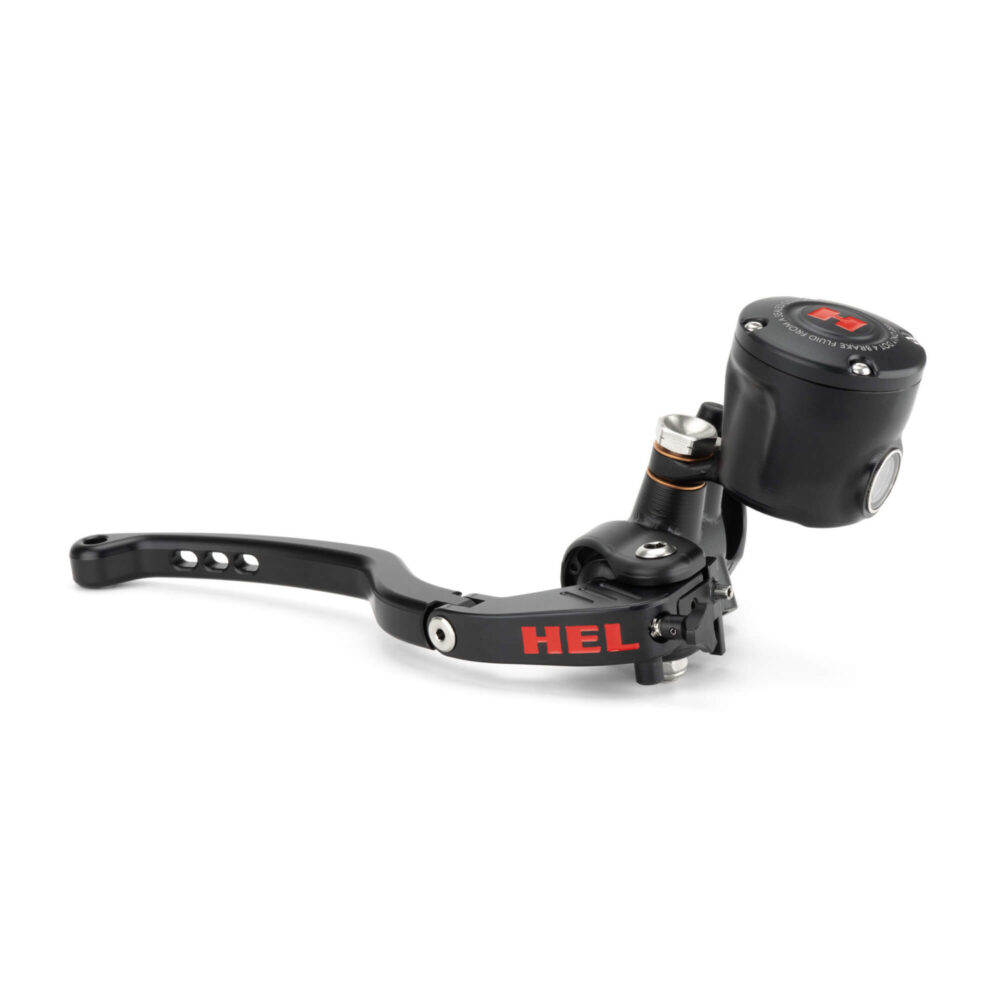

This new modern design uses a spigot for the reservoir pot (or banjo for 90 degree take off) and has also been designed to pair seamlessly with our new CNC billet reservoir pots.
Lever Ratios
All of our 19mm radial master cylinders offer 18/19 or 20/19 ratios.
All of our 16mm radial master cylinders offer 15/16 or 17/16 ratios.
- 18 – More lever travel and ‘feel’ on twin caliper systems (larger CC models)
- 20 – Less lever travel and the ‘hardest feel’ on the lever
- 16 – Clutch master cylinders or single front brake (smaller CC models)
